CDI-5400 Single Ring Flow Meter 2"- 4" Available For Copper Pipe

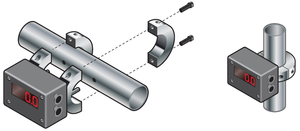

Drill Guide CDI-5400-UG Is Required To Install
The meter measures flow by maintaining one probe warmer than the other. It calculates the mass velocity from the amount of heat required, and then calculates the flow on the basis of pipe area. The flow rate, in scfm, is shown on a large, four-digit display; a 4-20 mA output and a pulse output permit remote display, totalizing and data collection. Power Supply Included
